Pressure gauges

Discover the precision and reliability of MOTOMETER pressure gauges for vehicles and machinery. Our mechanical pressure gauges utilize a highly precise measuring mechanism with Bourdon tube to accurately measure the oil or air pressure in your system. Each gauge is housed in a robust metal casing, providing maximum protection and durability.

Choose from various configurations to find the perfect solution for your requirements. Rely on MOTOMETER to deliver accurate and dependable measurements at all times.

Ready to optimize your pressure measurement? Contact us now to learn more and place your order!

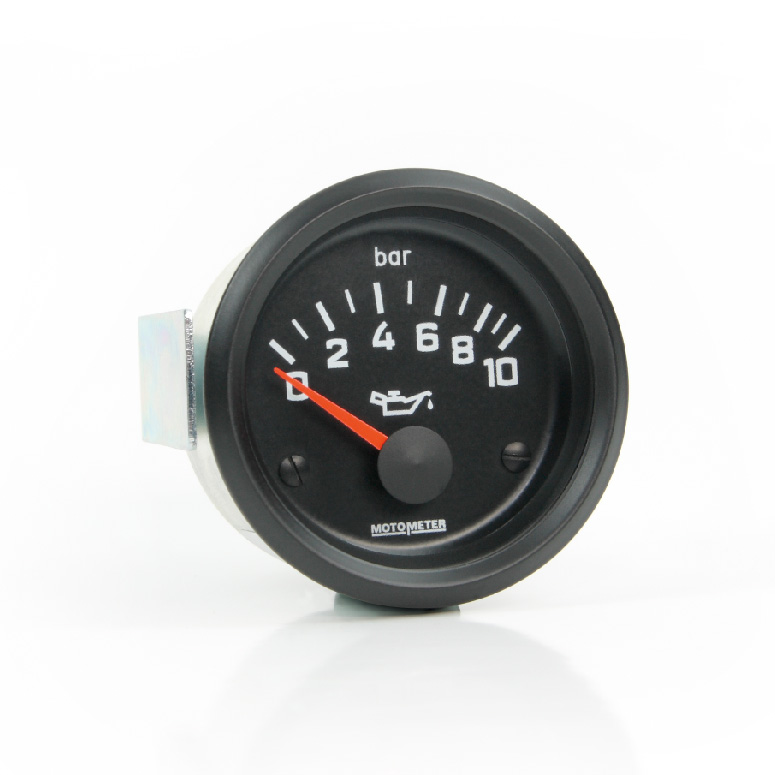

The variants of our electrical oil pressure displays:

Product image
Drawing
Measuring range
Voltage
Diameter
Use
Symbol
Resistance
Product Inquiry
Link to the shop

644 060 1028

0 – 10 bar
24V
60 mm
Off earth
Engine oil pressure
10 …184 Ohm

644 001 1034

0 – 10 bar
24 V
52 mm
Engine oil pressure
10…184 Ohm

644 001 7007

0 – 10 bar
12 V
52 mm
Off earth
Engine oil pressure
10…184 Ohm

644 001 7005

0 – 10 bar
24 V
52 mm
Off earth
Engine oil pressure
10…184 Ohm

644 060 1026

0 – 10 bar
24V
60 mm
Engine oil pressure
10…184 Ohm

644 001 7012

0 – 5 bar
24V
52 mm
Off earth
Engine oil pressure
10…184 Ohm

644 001 7006

0 – 5 bar
12V
52 mm
Off earth
Engine oil pressure
10…184 Ohm

644 001 1033

0 – 5 bar
24 V
52 mm
Engine oil pressure
10…184 Ohm
Resistance characteristic
5 bar
0 bar 10 Ohm
3 bar 116 Ohm
5 bar 184 Ohm



10 bar
0 bar 10 Ohm
6 bar 124 Ohm
10 bar 184 Ohm



25 bar
0 bar 10 Ohm
15 bar 125 Ohm
25 bar 184 Ohm

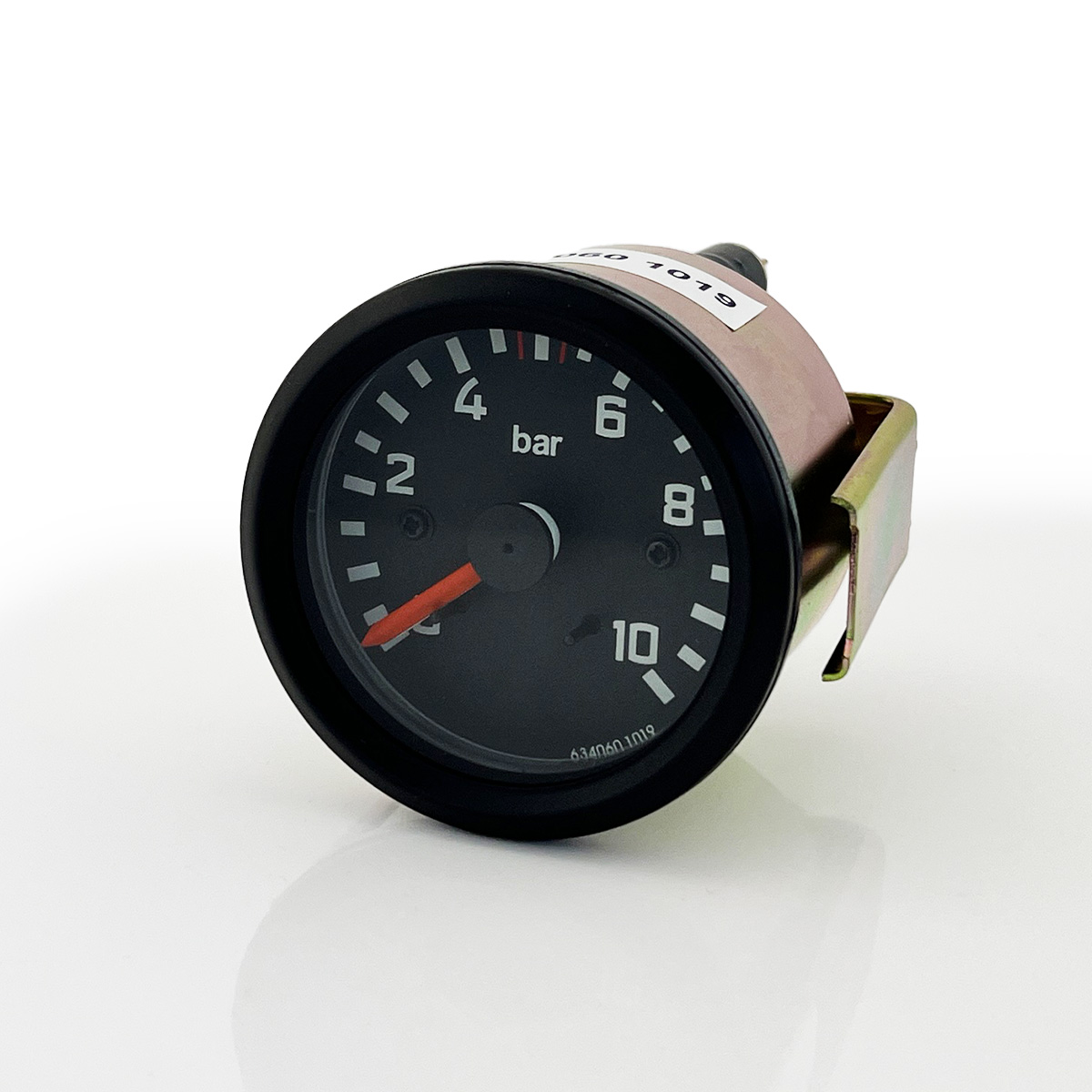

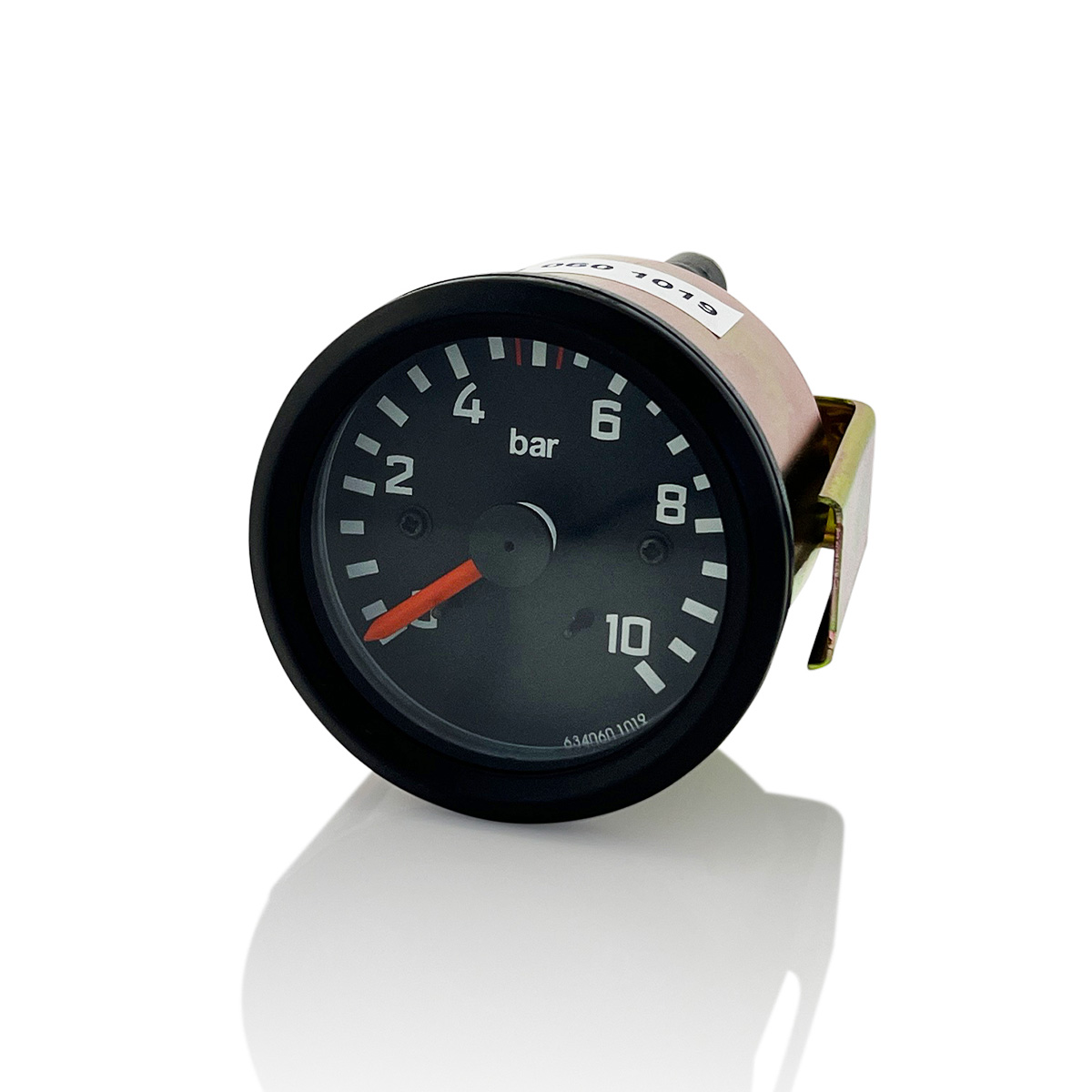

Our double pressure gauge

634 060 1019

Drawing

Measuring range

Diameter

Use

Pointer

Symbol

Connecting thread

Product Inquiry

Link to the shop

0 – 10 bar
60 mm
Air pressure
Red/White
Without
M12 x 1,5

We offer customized solutions for your individual product requirements!

None of the listed pressure gauges exactly meets your needs? Then don’t hesitate to contact us via our contact form to discuss special requests and individual product customizations. Our experienced team is always available to understand your requirements and provide you with the optimal solution.

Top Ausbildung in Pforzheim zu vergeben

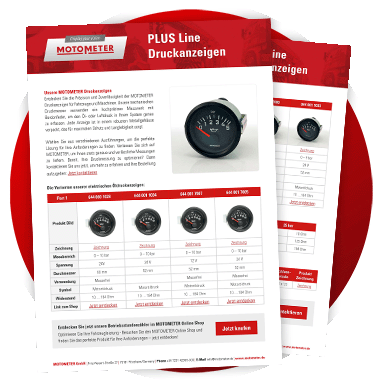

Ready for all the essential information at a glance? Get the comprehensive product sheet for our MOTOMETER pressure gauges now!

Learn everything you need to know about our product to optimize the performance of your machines. Click here to download the product sheet and take the first step towards greater accuracy in pressure measurement!
