Electronic pressure tester ECT 700

Measuring, Evaluating, Archiving.
Different independent pressure systems with different pressure ranges required so far multiple test units in workshops. MOTOMETER offers with the pressure gauge ECT 700 an innovative and reliable complete solution for the modern workshops, which measure, evaluate and archive digitally different pressure systems up to 70 bar.

Following pressure measurements can be carried out with the ECT 700:

  • Measurement of compression pressure
  • Pressure loss test at engines
  • Continual pressure test

Interested in the ECT 700 electronic pressure tester? Request information or a quote now to enhance your workshop operations!

Electronic pressure tester ECT 700 variants:

ECT 700 Starter – Set

Content:
1 x Handheld unit ECT 700 incl. protection cover
1 x Extensions 140 mm
1 x Extension 70 mm
1 x Rubber cone with socket 30°
1 x Rubber cone with socket 63°
1 x Pressure hose
1 x Software ECT 700 for PC
1 x USB-cable
1 x Pressure sensor
1 x Case
1 x Battery E-Block 9V

Submit a product inquiry now

ECT 700 Profi – Set

Content:
1 x Handheld unit ECT 700 incl. protection cover
1 x Software ECT 700 for PC
1 x USB-cable
1 x Pressure sensor
1 x Case
1 x Battery E-Block 9V

Submit a product inquiry now

ECT 700 Set for drop of pressure test

Content:
1 x Y-piece
2 x Connection pieces for compressed air
1 x pressure regulator
1 x Stopcock with connector / coupling
1 x Spiral pressure hose

Submit a product inquiry now

Further features
  • Reliable and precise test results through electronic measured value recording
  • Evaluation and archiving of measurement data
  • Clearly structured menu
  • Digital display allows easy reading of measuring values
  • Display, print out and archiving of the measurement data
  • Robust and water protected casing
  • Display of battery voltage
  • Further accessories offer additional options at any time
  • Integrated automatic shutdown device
  • Measured values units (bar, psi and kPA)
Technical data

Measurement range: – 4 up to + 70 bar (0..1015 psi )
Measuredness: +/- 1 %
Measuredness pressure loss: +/- 20 mbar
Interface: USB 2.0
System requirements: Windows 2000 / XP / Vista / 7

We offer tailored solutions for your individual product requirements!

Need a reliable solution for pressure testing? Reach out through our form to learn more about the ECT 700, get personalized advice, and request a tailored quote. Our team is always ready to help you find the best solution for your needs.

Top Ausbildung in Pforzheim zu vergeben

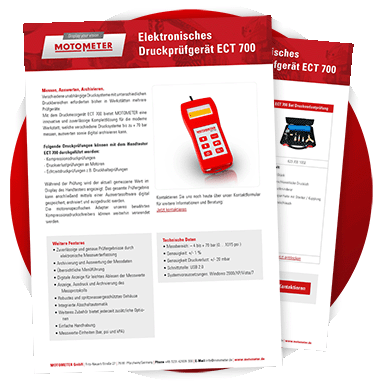

Are you looking for all the essential information at a glance? Get your hands on the comprehensive product datasheet for our electronic pressure tester ECT 700!

Learn everything you need to know about our product. Click here to download the product datasheet and discover more about our product!

Are you looking for all the essential information at a glance? Get your hands on the comprehensive product datasheet for our electronic pressure tester ECT 700!

Learn everything you need to know about our product. Click here to download the product datasheet and discover more about our product!

Top Ausbildung in Pforzheim zu vergeben

Calibration/Repair ECT 700

In principle, it is possible to have your electronic pressure tester ECT 700 calibrated or repaired by us. However, our technical department needs to assess in each individual case whether calibration or repair is possible. To do this, please send your electronic pressure tester ECT 700 (along with any accessories and the completed calibration form) to our address:

MOTOMETER GmbH
Fritz-Neuert-Straße 27
75181 Pforzheim
Germany

Important: Include the completed ECT 700 calibration form with your shipment, which you can download via the button provided. Only with a fully completed document can we ensure processing without delay. Be sure to also include all your used accessories so that we can facilitate the process smoothly.

Attention: Shipments from third countries can only be processed for deliveries Door to Door, Incoterms DDP.

Download: User Manual for the Electronic Pressure Tester ECT 700​

Optimize your work environment and productivity by understanding the full functionality of our ECT 700. With our detailed user manual, you’ll effortlessly navigate through all features and maximize the performance of this innovative pressure testing device.

Download: Software electronic pressure tester ECT 700

To use the software for the ECT 700 electronic pressure tester, download it using the button opposite, install the software and save it on the USB stick supplied. If you have any questions about the installation, please feel free to contact us at any time using our contact form: Contact us now
